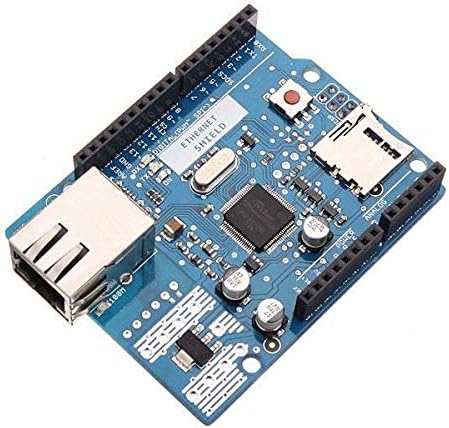

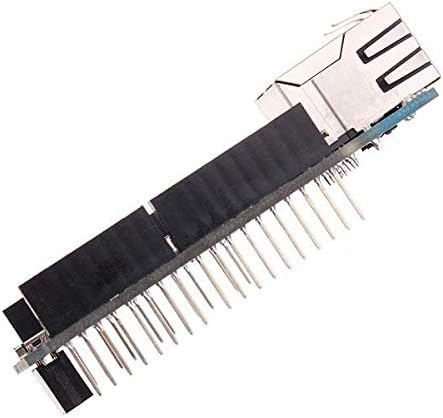

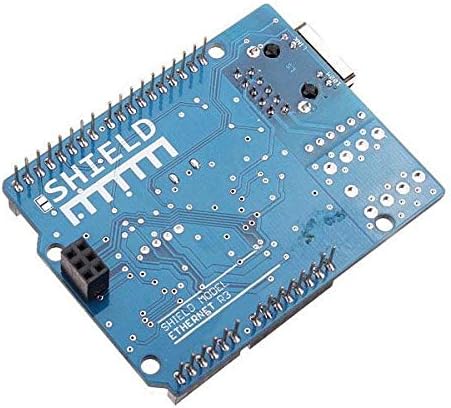

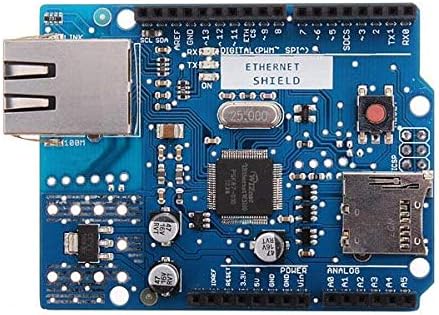

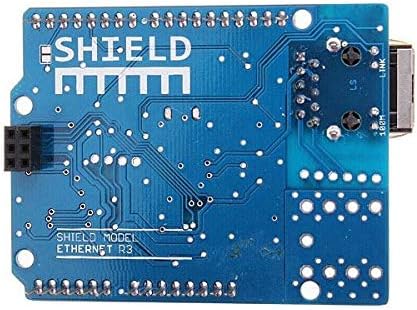

Ethernet Shield W5100 R3 Support PoE for Arduino UNO Mega 2560 Nano

$9.90 USD
$9.90 USD
Sale Sold out
  • The most recent revision of the board exposes the 1.0 pinout on rev 3 of the Arduino UNO board.
  • The Arduino Ethernet Shield has a standard RJ-45 connection, with an integrated line transformer and Power over Ethernet enabled.
  • There is an onboard micro-SD card slot, which can be used to store files for serving over the network. It is compatible with the Arduino Uno and Mega (using the Ethernet library). The onboard microSD card reader is accessible through the SD Library. When working with this library, SS is on Pin 4. The original revision of the shield contained a full-size SD card slot; this is not supported.
  • The Ethernet Shield for Arduino connects your Arduino to the internet in mere minutes. Just plug this module onto your Arduino board, connect it to your network with an RJ45 cable(not included) and follow a few simple instructions to start controlling your world through the internet. As always with Arduino, every element of the platform – hardware, software and documentation – is freely available and open-source. This means you can learn exactly how it's made and use its design as the starting point for your own circuits. Hundreds of thousands of Arduino boards are already fueling people’s creativity all over the world, everyday.

    The Ethernet Shield for Arduino allows an Arduino board to connect to the internet. It is based on the Wiznet W5100 ethernet chip. The Wiznet W5100 provides a network (IP) stack capable of both TCP and UDP. It supports up to four simultaneous socket connections. Use the Ethernet library to write sketches which connect to the internet using the shield. The ethernet shield connects to an Arduino board using long wire-wrap headers which extend through the shield. This keeps the pin layout intact and allows another shield to be stacked on top.

    Specification:

    Requires an Arduino board(not included)
    Operating voltage 5V(supplied from the Arduino board)
    Ethernet controller: W5100 with internal 16K buffer
    Connection speed: 10 / 100Mb
    Connection with Arduino on SPI port
    IEEE802.3af compliant
    Low output ripple and noise (100mVpp)
    Input voltage range 36V to 57V
    Overload and short-circuit protection
    9V output
    High efficiency DC / DC converter: typ 75% @ 50% load
    1500V isolation (input to output)
